ES At DQCRANES, QDX 20/5 Ton Double Girder electric hoist is the most popular & common trolley hoist which is widely used in workshops, warehouses, etc. Its outstanding advantage is DIN/FEM design, lightweight design, modular design, advanced manufacturing technology, high security, high reliability, low energy & free maintenance, and intelligence.
European electric hoists are designed to be used in a variety of industries, including manufacturing, construction, and warehousing. They are also used in shipyards and other industrial settings. Euro-style electric hoists are known for their durability and reliability. They are also relatively easy to operate and maintain.
Requirement
In Feb 2023, a Saudi Arabian company sent an inquiry to us, looking to purchase a new hoist for their manufacturing plant. They had been using the CD type single speed wire rope hoist for many years, and it was starting to show its age. They needed a new European standard electric hoist that was more powerful and reliable, and that would meet the latest safety standards.
Solution
The company began its search for a new wire rope hoist by contacting several different manufacturers, including ours. After much searching and comparisons, The company finally decided to purchase a 20/5t European standard double girder hoist from us. We, DQCRANES is a leading manufacturer of lifting equipment, and have a reputation for building high-quality products.

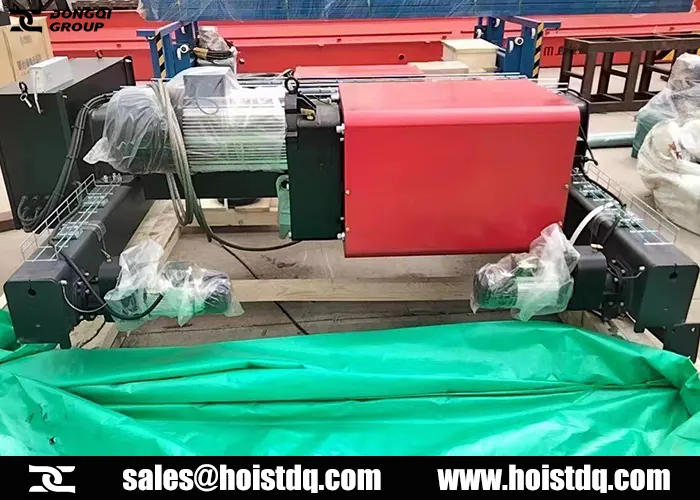

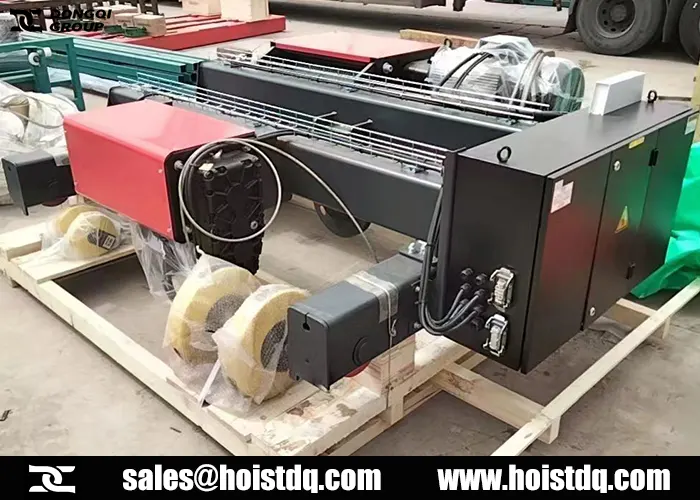

Our QDX type double girder electric hoist with European standard design has a powerful lifting capacity from 1 ton to 80 tons, long service life, and comprehensive safety features. After receiving the customer’s 70% advance payment, we immediately arranged the production. Now the hoist production and pre-factory testing are complete and ready to be packed and shipped to Saudi Arabia.
Design and Specifications
- Lifting Capacity: 20/5T
- Lifting Height: 10m
- Trolley rail gauge: 2m
- Traveling Speed: 2.0-20m/min
- Duty Class: M5
- Power Supply: 380V/60Hz/3Phase
Euro-style Double Girder Trolley Hoist Features
- Full frequency conversion control, double-speed output, millimeter accuracy.
- Hook 0 displacement at the horizontal direction, rapid positioning.
- Modern integration design combines the motor together with fan, reducer, rope drum, and brake, compact structure.
- Optimum cooling with good cooling performance, cooling is improved by 30%, resistant to a temperature rise of 170 ° C.
- Epoxy zinc-rich painting for one bottom and two sides of 120μm thick, to achieve a long lifespan, beautiful appearance, and good luster.
Advantages
- Compact structure, small headroom size, make full use of plant space.
- Modular design and flexible combination.
- Low-noise gearing design, silent operation.
- High energy efficiency motor combined with a gear reducer can achieve low energy consumption and high torque output.
- High-precision automatic adjustment of electromagnetic brake to achieve fast, low noise, and reliable braking.
- Wire rope with high strength and flexibility can achieve greater lifting breaking tension.
- High-strength alloy wheel set for longer life.
Types of Electric Hoists for Sale to Saudi Arabia
DQCRANES offers many different types of electric hoists available for sale in Saudi Arabia. Some of the most popular types include:
- Electric chain hoists: These hoists use a chain to lift and lower loads. They are typically used for light-duty lifting applications, such as lifting materials in warehouses or factories.
- Electric wire rope hoists: These hoists use a wire rope to lift and lower loads. They are typically used for heavier-duty lifting applications, such as lifting materials in construction or manufacturing.
- Electric trolley hoists: These hoists are mounted on a trolley that runs along a track. They are typically used for lifting materials in warehouses or factories.
- Electric overhead hoists: These hoists are mounted on an overhead beam. They are typically used for lifting materials in warehouses or factories.
- Winch hoists: electric winch is used to complete traction drive with human power or mechanical power via a reel, which can handle heavy materials or loads vertically or horizontally, or obliquely. Suitable for civil construction and installation engineering of construction and installation companies, mining areas, factories, etc.
How to Buy Electric Hoist in Saudi Arabia?
How to select a suitable electric hoist in Saudi Arabia? The type of electric hoist that is best for you will depend on the specific lifting application. If you are not sure which type of hoist to choose, please feel free to contact us!
Here are some additional factors to consider when choosing an electric hoist:
- Lifting capacity: The lifting capacity of the hoist should be greater than the weight of the load you will be lifting.
- Lifting height: The lifting height of the hoist should be sufficient to reach the height at which you will be lifting the load.
- Speed: The speed of the hoist should be appropriate for the lifting application.
- Power source: The hoist should be powered by the type of power source that is available at your location.
- Application: What materials are to be lifted? How about the working environment?
Contact DQCRANES directly, we will be able to provide you with the best price on the electric hoist that you are interested in.
