ES Beam trolley
As a hoist and crane manufacturer, Dongqi Hoist and Crane is able to provide types of cranes, hoists, and winches, and trolleys and other products to meet the material handling needs of various industries, etc.
Features of Beam trolley
Dongqi beam trolley has the following features:
- The beam trolley is designed with compact structure, light weight, safe and reliable.
- High universality, interchangeability and lifting capacity.
- Convenient, easy maintenance and operation, stable lifting.
- Dongqi beam trolley is the most widely used and popular light lifting equipment.
Applications of Beam trolley
End carriages can be installed on various kinds of cranes or suspended on I beam to do some straight or curve motions. Fixed electric hoists can be installed on fixed support to do some vertical motions.
Widely used in industrial and mining, rail way, port, warehouse, etc.
electric hoist trolley
Dongqi Electric Hoist Beam trolley is one of our perfect products. The unique side guide system makes our beam trolley drives smoothly. Frequency control of motor speed is available, can match various working situation and environment. Characteristics: Simple structure gear box Light self-weight motor and well balanced.
Technical parameter of Electric hoist beam trolley
| Model | Capacity(t) | Unit(t) | Speed(m/min) | Motor(kw) | Minimum radius of turn |
|||
| W | U | R | T | |||||
| DPC-0.5 | 0.5 | 315 | 212 | 142 | 231 | 21m/min or 11m/min |
0.4 | 0.8 |
| DPC-01 | 1 | 315 | 212 | 142 | 231 | 0.4 | 0.8 | |
| DPC-02 | 2 | 325 | 220 | 142 | 231 | 0.4 | 0.9 | |
| DPC-03 | 3 | 340 | 250 | 142 | 231 | 0.75 | 1.0 | |
| DPC-05 | 5 | 400 | 291 | 142 | 231 | 0.75 | 1.5 | |
| DPC-7.5 | 7.5 | 400 | 291 | 142 | 231 | 0.75 | 1.8 | |
| DPC-10 | 10 | 500 | 371 | 142 | 231 | 0.75 | 2. | |
Manual Beam trolley
Characteristics: Smoother horizontal runs. Buffer block pieces can prevent hitting and avoid beam trolley dropping from the rail. Pulley edge can help the beam trolley to avoid dropping from the rail too. Suitable for light manual lifting operation.
Technical Parameter of manual beam trolley
| Model | capacity(t) | Unit(t) | Minimum radius of turn |
|||
| F | G | P | J | |||
| PC-0.5 | 0.5 | 200 | 130 | 91 | 50-12 | 0.6 |
| PC-01 | 1 | 200 | 170 | 115 | 50-102 | 1.0 |
| PC-02 | 2 | 218 | 205 | 138 | 68-130 | 1.0 |
| PC-03 | 3 | 275 | 236 | 157 | 82-153 | 1.2 |
| PC-05 | 5 | 275 | 280 | 178 | 82-153 | 1. |
Manual Beam trolley Hoist
DONGQI Manual Beam trolley Hoist and crawls can be supplied in many different designs and are used to support and mount hoisting equipment for fixed or travelling applications. They are tested with overload and supplied with a test certificate and an operating instructions manual which contains a CE declaration of conformity.
Main specifications of manual beam trolley hoist
Manual beam trolley hoist Capacity:0.5-5ton
Manual beam trolley hoist Phase: 3 Voltage: 200V-600V
Geared Beam trolley
Capacities 500 – 20,000 kg
The Geared Beam trolley can be hung on the regular I-steel in various. it enables the exact positioning or easy traversing of large loads with either manual or powered hoisting equipment.
Geared Beam trolley features:
- Easy installation and on-site operations
- Dual tread iron wheels with high quality sealed ball bearing
- Heavy rolled steel side plates with a universal hanging eye, can be coupled closely to most hoists.
Designed to function on both flat and minor irregular beams surface like I-beam and H-beam.

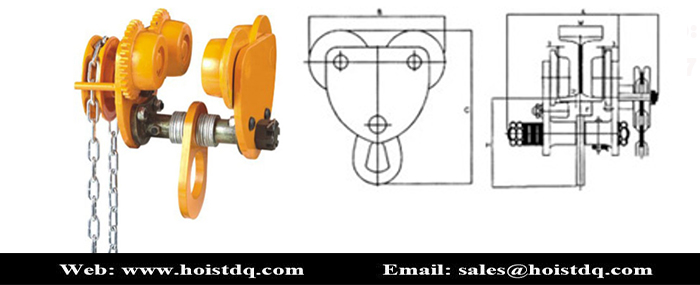

Geared Beam trolley
Capacities 1000 – 10,000 kg
The Geared Beam trolley can be hung on the regular I-steel in various.it enables the exact positioning or easy traversing of large loads with either manual or powered hoisting equipment.
Geared beam trolley features
- Easy installation and on-site operations
- Dual tread iron wheels with high quality sealed ball bearing
- Heavy rolled steel side plates with a universal hanging eye, can be coupled closely to most hoists.
| Geared beam trolley specifications | |||||||||||||
| Capacity | Compatible Rail Size (mm) | Dimensions(mm) | Min.Rotation Radius(mm) | N/W (kg) | |||||||||
| Capacity | Width(W) | Height(H) | |||||||||||
| Capacity | Min. | Max. | Min. | Max. | A | B | C | D | E | F | K | ||
| (Ton) | |||||||||||||
| 1 | 75 | 125 | 125 | 250 | 206 | 231 | 120 | 45 | 80 | 27 | 117 | 1300 | 14.0 |
| 2 | 100 | 150 | 150 | 400 | 241 | 271 | 155 | 60 | 100 | 33 | 119 | 1500 | 23.5 |
| 3 | 100 | 150 | 180 | 400 | 261 | 311 | 185 | 70 | 113 | 47 | 134 | 2000 | 33.5 |
| 5 | 125 | 175 | 250 | 450 | 294 | 351 | 220 | 80 | 125 | 53 | 134 | 2600 | 53.5 |
| 10 | 150 | 175 | 250 | 450 | 294 | 721 | 165 | – | 125 | 53 | 134 | – | 101.0 |
Notes: the standard length of hand Pulley chain is 3 meter
