0.5 ton pillar jib crane | 0.5 ton free standing jib crane | 0.5 ton cantilever jib crane| 0.5 ton jib crane China

BZ Pillar grúa de horca-0.5 ton

0.5 ton pillar jib crane for light material handling. 0.5 ton free standing jib crane is your cost-effective material handling solution. Check the Chinese 0.5 ton cantilever jib crane now. Bet the 0.5 ton pillar jib crane will meet your light material handling.

Pillar jib crane -0.5 ton

Pillar jib crane also called pillar mounted jib crane is a type of freestanding small and medium material handling equipment with the base plate installed on the floor without any support from the building.

Pillar Jib Crane

The lifting capacity of pillar jib crane is 0.5 to 10 tons and the working class is A3. The main specifications of pillar jib crane are presented as follow:

Product Type	BZ
Pillar Jib Crane Lifting Capacity	0.5~10t
Pillar Jib Crane Lifting Height	3~12m
Pillar Jib Crane Working Class	A3
Pillar Jib Crane Ambient Temperature	-25~40℃

0.5 ton pillar jib cranes specifications

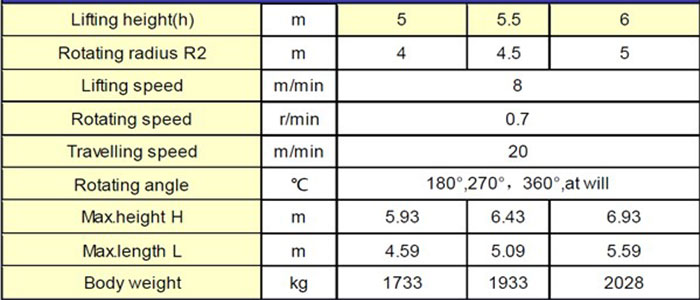

0.5 ton pillar jib crane specification

Components of 0.5 Ton Pillar Jib Crane

Pillar jib crane is mainly consisted of up-pillar, down pillar, main beam bar, eléctrico de la grúa, rotating mechanism and electric system, etc.

Pillar Jib Crane drawing

Application of Pillar Jib Crane

Pillar jib crane is widely used in workshop, warehouse, dock, yard, storage and other places where the pillar can be installed. Pillar jib crane shows superiority when used in short range or serried applications.

However, they are forbidden to be used in dangerous applications where is inflammable, explosive, and corrosive, etc. What’s more, pillar jib crane cannot be used to handling molten metal, toxic and inflammable and explosive materials, etc.

Advantages of Pillar Jib Crane

Pillar jib crane has the advantages of unique structure, high safety, reliability, high working efficiency, energy saving and time saving, flexible operation, etc.

Compact Design

The compact structure design makes pillar jib crane light in dead weight and excellent in work performance, improves space utilization rate and narrows hook operation distance to the maximum intently. The best material handling solution for your applications.

Smooth, Fast Loading, Excellent Performance

Stepless frequency conversion control system is installed to the crane and trolley, which make pillar jib crane brake stably, locate accurately, perform reliably, and travel steadily, position quickly, and solve the problem of swing of loads.

Safer, Reliable, Using Free Maintenance Design

Best technology is adopted which makes the frequent operations safe and efficient.
Perfect braking systems can largely improves pillar jib crane safety and reliability, equipped with dustproof design, the working life can reach up to 1 million times.
Hardened and polished tooth surface ensures the operation of crane smoothly without troubles.

Features of Pillar Jib Crane

Three phase AC of power supply, rated frequency 50HZ, and rated voltage 380V.
Altitude of crane installation site is less than 2000m.
Pipe with ample strength is made into post.
Crane jib swivels on antifriction bearings.
Slewing motion is available in both manual as well as motorized variety.
Jib construction can be under braced or over braced.
Wide base plate at the bottom of jib makes the loads pressures distributed evenly on foundation.
Manual chain hoist, geared trolley, electrical chain hoist, motorized trolley and other lifting units are available.
Radio remote control are available for remote crane operation.

Pillar jib crane offering of Dongqi Crane

2 ton pillar jib cranes specifications, 3 ton pillar jib cranes specifications, 5 ton pillar jib cranes specifications
